Introduction
Earrings look small, beautiful, and elegant, but behind every finished pair there is a detailed making process. One of the most important methods used in earring manufacturing is the wax casting process. This process helps turn a design idea into a real metal earring with proper shape, detail, strength, and finishing.
Wax casting is widely used for creating stud earrings, hoop earrings, drop earrings, cluster earrings, halo earrings, floral earrings, and custom diamond earrings. It gives jewelers the freedom to make creative designs with accurate size, clean details, and proper stone placement.
What Is Wax Casting in Earrings?
Wax casting is a jewelry making process where the earring is first created in wax form. This wax model works like a sample or base shape of the final earring. Once the wax model is ready, it is used to create a mold. After that, the wax is melted away and molten metal is filled into the empty space.
This method is also called the lost wax casting process because the wax disappears during production. The space left behind by the wax becomes the final shape of the earring when metal is poured into it.
For earrings, this process is very useful because it helps create fine details, smooth curves, small stone seats, and matching pairs. Since earrings are worn close to the face, their size, symmetry, and finish must be clean and attractive.

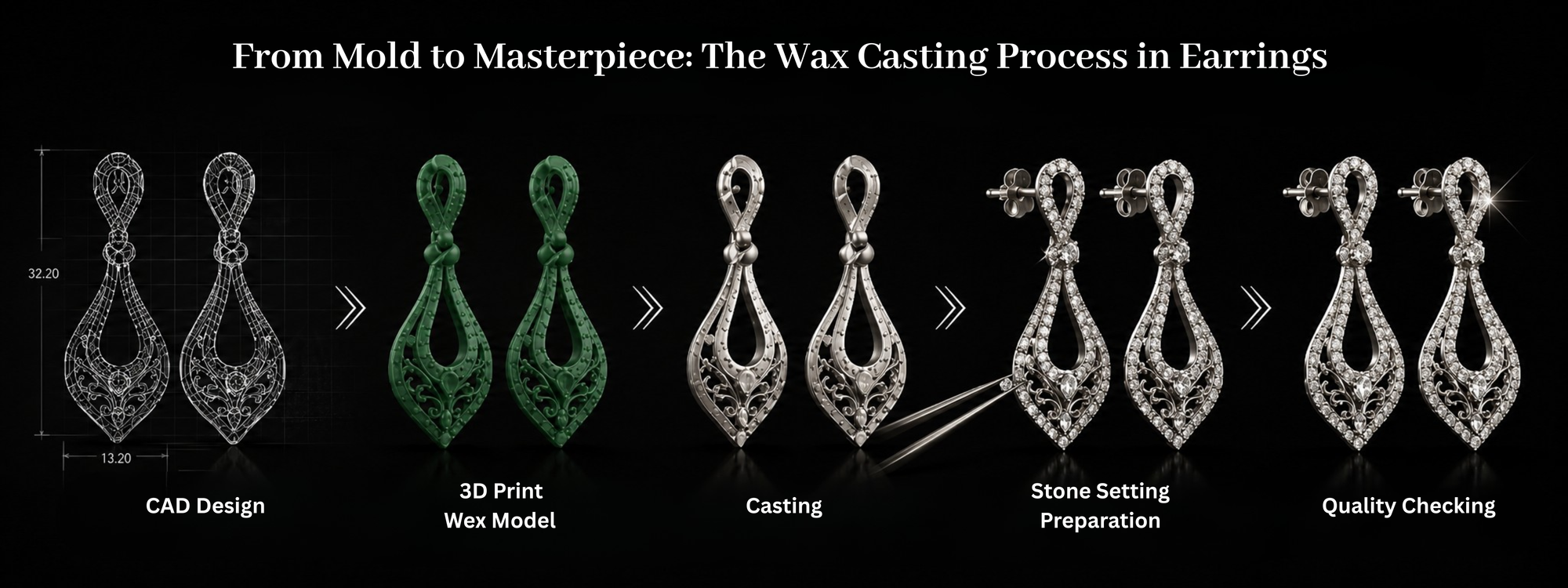

Step 1: Designing the Earrings
The earring manufacturing process starts with a carefully planned design. The design may be based on a sketch, photo, customer idea, or CAD model. Important details such as shape, size, metal type, diamond size, stone setting, backing style, and finish are finalized during this stage. Proper planning helps create a clear production path. Design balance is essential to ensure the earrings are comfortable and not too heavy. Stud earrings must fit neatly on the earlobe, while hoops and drop earrings require proper weight and movement planning. A well-designed earring improves both comfort and overall appearance.
Step 2: CAD Design for Accuracy
CAD is used to create a detailed 3D digital model of the earrings before wax production begins. It helps designers check the exact size, thickness, stone placement, and overall structure. CAD provides a realistic preview of the final earrings from multiple angles. This is especially important for diamond earrings, where precise stone settings are required. Designers can identify and correct potential issues before manufacturing starts. The process reduces production errors, saves time, and improves accuracy. CAD also helps manage the earring's weight, ensuring it is neither too heavy nor too fragile. As a result, the final design remains attractive, durable, and comfortable to wear.
Step 3: Making the Wax Model
After the design stage, a wax model is created as a physical version of the earring. This model can be made using 3D printing, carving, or other manufacturing methods. It includes all fine details such as shape, stone settings, prongs, curves, and textures. The wax model acts as a preview before metal casting. Once prepared, it is carefully inspected for any flaws or missing details. Any required corrections are made at this stage to avoid future issues. For earrings, both pieces must be perfectly matched in size, shape, and design. This ensures a balanced and professional final product.
Step 4: Preparing the Wax for Casting
After the wax model is approved, wax channels called sprues are attached to it. These sprues help guide molten metal into the mold during the casting process. Proper sprue placement is important to ensure the metal reaches all parts of the design evenly. Incorrect placement can cause defects like weak points, rough surfaces, or missing details. For earrings, careful attention is needed because the designs are small and highly detailed. When multiple pieces are cast together, they are attached to a central wax stem known as a wax tree. This setup allows several earrings to be cast at once efficiently.
Step 5: Creating the Mold
After the wax tree is prepared, it is placed inside a metal flask. A special casting material is poured around it to form a solid mold, a process known as investment molding. This material carefully covers the wax and captures every detail of the design. It includes fine elements like stone seats, curves, and surface textures. Once hardened, the investment material forms a strong mold around the wax model. This mold is essential for shaping the molten metal into the final earring design. Proper mold preparation is very important to avoid defects in casting. It requires precision, care, and experience to achieve accurate results.
Step 6: Burnout Process
After the mold hardens, it is placed in a high-temperature kiln for the burnout process. In this stage, the wax inside the mold melts and burns away completely. This leaves a hollow cavity in the exact shape of the earring design. This method is known as lost wax casting because the wax model is removed while its shape is preserved. Proper burnout is essential to ensure no wax residue remains inside the mold. Any leftover wax can cause defects in the final metal casting. A clean burnout allows the molten metal to flow smoothly and fill the design accurately. This step is especially important for detailed earrings, where even small errors can affect the final appearance.
Step 7: Melting and Casting the Metal
After the mold is prepared, the chosen metal such as gold, silver, or platinum is melted according to the design requirement. The metal must reach the correct temperature to ensure proper casting. If it is too cool, it will not fully fill the mold, and if it is too hot, it may damage the surface quality. Once ready, the molten metal is poured or forced into the mold cavity. It fills the space left by the wax model and takes its exact shape. After cooling, the metal solidifies into a rough version of the earrings. This stage marks the key transformation from wax design to real metal. The earrings are then ready for further processes like cleaning, setting, polishing, and finishing.
Step 8: Removing the Rough Casting
After the metal cools, the mold is broken to reveal the cast earrings. At this stage, the earrings are still in a rough form and not yet finished. They may contain excess metal, sprue marks, and surface texture from casting. The earrings are carefully removed from the casting tree. Any extra metal parts are trimmed off with precision. The jeweler then inspects the rough casting to ensure the design has formed correctly. This step provides the first real view of the metal earrings. Although the shape is visible, the surface still needs refinement. Further finishing processes are required to make the earrings clean, smooth, and ready to wear.
Step 9: Cleaning and Filing
After rough casting, the earrings are cleaned and filed to refine their shape. Extra metal is removed and all rough edges are smoothed carefully. This prepares the surface for polishing and final finishing. The process requires precise handwork because earrings are small and delicate. The jeweler must work slowly to protect prongs, stone seats, and detailed areas. Every part, including front, back, sides, and joints, is checked for sharpness or flaws. Any rough or sharp edges are removed to improve comfort while wearing. Proper cleaning ensures a smooth base that enhances the final polish and overall quality of the earrings.
Step 10: Pre-Polishing the Earrings
Before stone setting, earrings undergo a pre-polishing stage to smooth accessible metal areas. This step ensures that hard-to-reach surfaces are finished in advance. It is especially important for diamond, halo, cluster, and pavé earrings where stones later block access. Pre-polishing improves overall surface quality and removes minor imperfections. It helps the earrings look cleaner even before final finishing. This process also makes the final polishing easier and more effective. While it is not the final shine stage, it prepares the piece for stone setting. Ultimately, it contributes to a more refined and professional final appearance.
Step 11: Stone Setting Preparation
After pre-polishing, the earrings move to the stone setting preparation stage. Each stone seat is carefully checked to ensure proper fit for diamonds or gemstones. Different designs use various settings such as prong, bezel, pavé, halo, or cluster, and each requires accurate preparation. The stone seat must neither be too loose nor too tight to ensure security and proper placement. A well-prepared seat helps the stone sit firmly and reflect maximum brilliance. For earrings, alignment is very important so both pieces match perfectly. The stones must sit at the same height, angle, and position. This step ensures strength, balance, and visual symmetry in the final design.
Step 12: Diamond or Gemstone Setting
After the setting areas are prepared, diamonds or gemstones are carefully placed into the earrings with high precision. Each stone must be accurately positioned and securely fixed. In diamond earrings, the setting is designed to hold stones firmly while allowing maximum light reflection for better sparkle. Cluster and halo designs require multiple stones to be aligned evenly and symmetrically. Even a small misplacement can affect the overall look of the design. Skilled craftsmanship is essential to ensure balance, strength, and accuracy. Stone setting is a key stage that enhances the brilliance and luxury appearance of the earrings. It plays a major role in defining the final beauty of the jewelry.
Step 13: Final Polishing and Finishing
After stone setting, the earrings undergo final polishing to achieve their finished shine. This process smooths and brightens all metal surfaces, including the front, back, sides, and edges. Special care is taken around the stones to ensure they remain undamaged and clean. Depending on the design, different finishes can be applied such as high-polish mirror shine, matte, satin, brushed, or textured effects. Each finish gives the earrings a unique character and style. Final finishing enhances the overall appearance and defines the personality of the piece. It transforms the earrings into a complete, polished, and luxurious jewelry item.
Step 14: Adding Earring Backs and Functional Parts
Earrings are completed by adding functional components such as backs or closures. Depending on the design, different types are used, including push backs, screw backs, lever backs, hooks, hinges, or clip-on systems. These parts must be both strong and comfortable for secure wearing. Stud earrings typically use posts with backs, while hoops often require hinges or locking mechanisms. Drop earrings usually use hooks or lever backs for movement and support. The backing system must match the weight and style of the earrings. A weak or uncomfortable backing can reduce usability. Proper functional parts ensure safety, comfort, and a better wearing experience.
Step 15: Quality Checking
Quality checking is the final stage of the wax casting process before the earrings are completed. In this step, every detail is carefully inspected. The jeweler ensures that both earrings match in design, size, and finish. Stone security is checked to confirm that all stones are firmly set. The surface must be smooth and the polish clean without defects. Functional parts like backs, posts, hinges, or hooks are tested for proper working. Any sharp edges or rough areas are removed. This process ensures the earrings are safe, comfortable, and visually perfect. Quality checking guarantees that the final product meets professional jewelry standards.
Conclusion
Wax casting is one of the most important processes in earring manufacturing. It helps transform a design idea into a real metal earring with proper shape, detail, and structure.
From CAD design and wax modeling to mold making, metal casting, cleaning, stone setting, polishing, and quality checking, every step adds value to the final piece.
This process is especially useful for custom earrings, diamond earrings, hoop earrings, stud earrings, and detailed designer styles. It allows jewelers to create beautiful, accurate, and comfortable earrings with professional quality.
From mold to masterpiece, wax casting shows how a small wax model can become a refined pair of earrings ready to shine.
